The Future Standard in Power Distribution: RiLineX – The Power Platform
RiLineX is the new 60 mm busbar system platform for power distribution in industry, buildings and infrastructure – manufacturer-neutral and license-free. This makes it suitable for use in almost all sectors because it adapts individually to virtually any requirement.
The standardized boards may be flexibly extended as needed. The fully integrated contact hazard protection to IP 2Xb, upgradable to IP 4X, ensures maximum protection and minimises the level of product and system expertise needed for planning and installation. In this way, RiLineX sets new standards in power distribution, helping to future-proof your company for the challenges of the energy sector.
- Up to 800 A
- Tool-free installation
- Short-circuit resistance up to 65 kA
- Full contact hazard protection
- Standardized flat copper bars
Why choose RiLineX?
With pre-assembled boards, tool-free plug-in tech, and modular adapters, the RiLineX busbar system offers quicker installs, fewer errors, and faster project turnarounds than the traditional busbar system compared in a third-party study.
Download this Whitepaper on how Rittal has
Changed Power Distribution Efficiency Forever »
Modular by Design. The basic system may be individually connected without using tools, or purchased as a fully pre-assembled board. It’s never been easier to assemble 60 mm busbar systems: Define your system assembly with the configuration tool. Alternatively: Done!

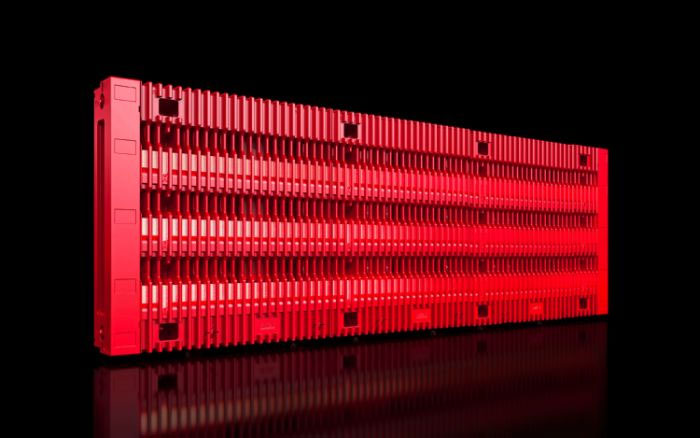

Fit the complete RiLineX board into the enclosure.
The entire board is supplied pre-assembled. It contains standardised copper bars and is ready to use straight away. Contact hazard protection is a maximum of IP 2XB. Protection can be increased to IP 3X via accessories. There are various board lengths... The modular board is comprised of a basic module, end modules and busbars. No tools are required for assembly. The modular design of this system offers maximum flexibility and may be individually adapted. Configurations up to a maximum system length of... Connection adaptor, component adaptor, circuit-breaker adaptor, NH technology, fuse holder. Tool-free installation, backwards compatible and upgradable.RiLineX complete board

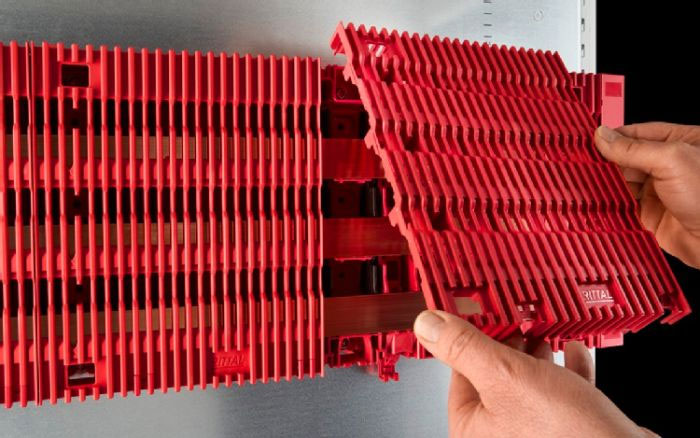

RiLineX modular board

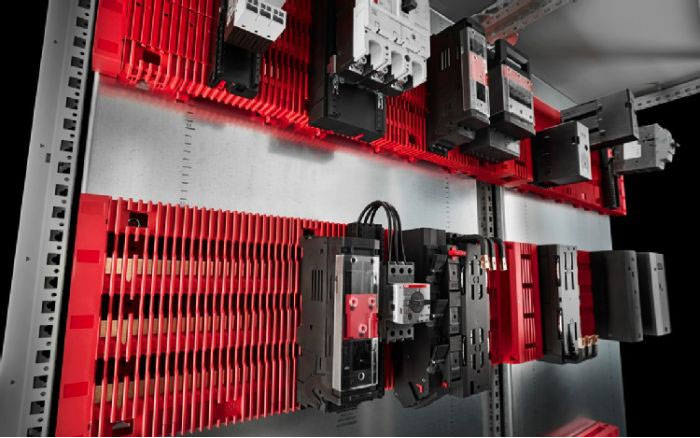

RiLineX components
Still Wiring Panels the Hard Way?
Traditional block-and-cable power distribution can eat up panel space, add labor, complicate expansion, and make future maintenance harder than it needs to be. Rittal’s new whitepaper explains how modular busbar systems can simplify design, reduce wiring complexity, lower installation costs, improve safety, free up valuable panel space, and make upgrades easier over the life of the system. If you’re looking for a more efficient, scalable approach to control panel power distribution, this whitepaper shows where busbar can deliver the biggest impact.

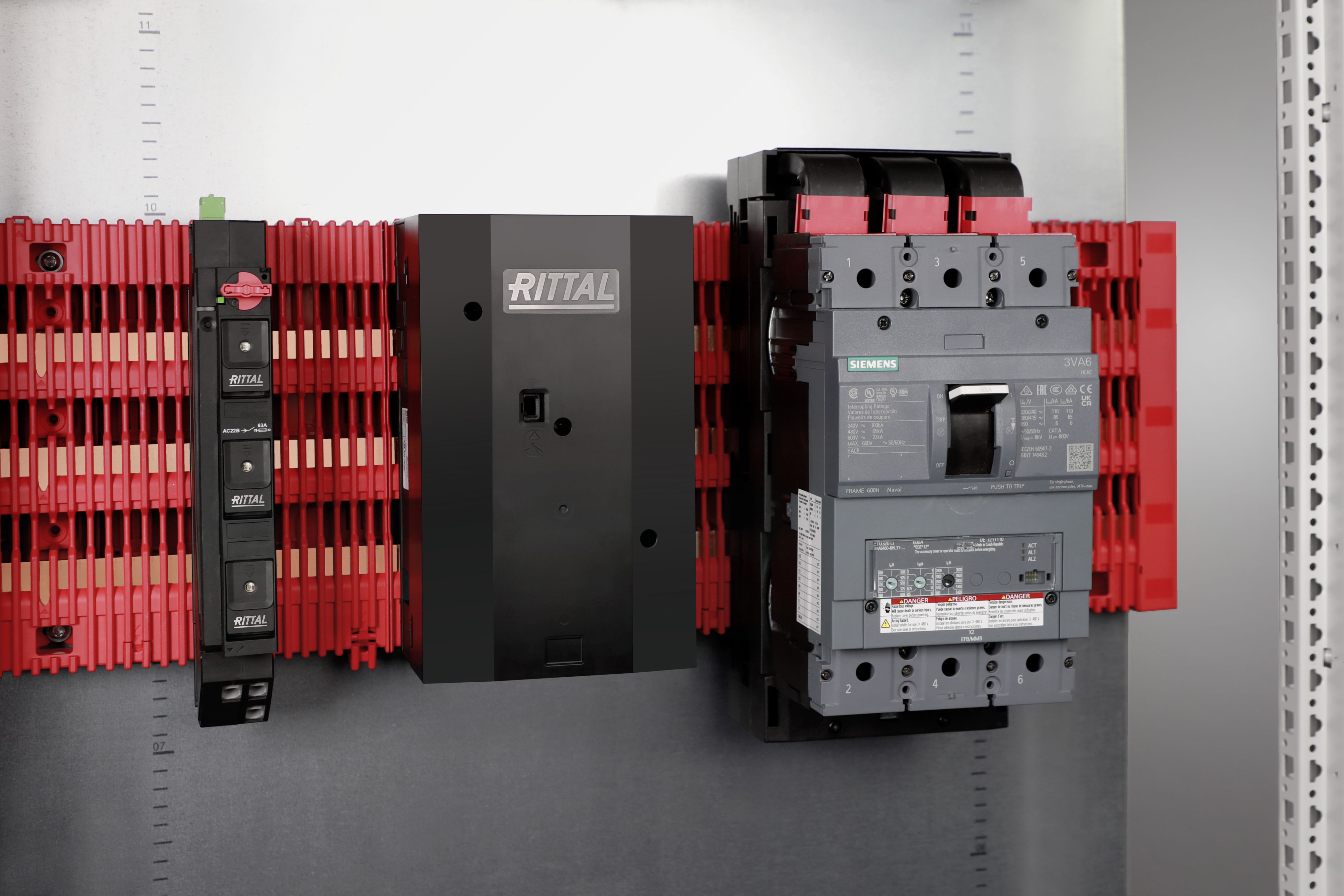

As part of a strategic partnership, new data center applications are made possible by the coordinated components from Siemens and the power distribution platforms RiLineX and Ri4Power from Rittal.
IES proudly partners with Rittal to help customers identify ideal systems for their workplace and application, keeping your equipment protected and performing at peak levels.
Ready to find the right solution?
