Do you have difficulties capturing large quantities of codes quickly and accurately at different distances?
Do limited space, varying code quality or poor lighting conditions pose a challenge?
Then the Lector83x is the right solution...
Automation environments are becoming more compact, but identification performance cannot be compromised. The Lector83x image-based code reader combines a compact industrial design with powerful decoding performance to deliver reliable barcode and 2D code reading across modern production and logistics systems.
With flexible optics, high-resolution imaging and intelligent decoding algorithms, manufacturers can integrate reliable identification into even the most space-constrained automation environments.
The high-performance Lector83x image-based code readers from SICK provide 1D and 2D code identification using a camera for large fields of view and medium reading distances.
AI-based segmentation, superresolution, multi-core CPU- Large depth of field, wide field of view
- Resolution of 3 or 5 megapixels, various lenses and illumination colors
- Intuitive, application-based configuration via web server
- Three-dimensional assignment of codes to objects
- Dual-port fieldbus and DIOs
Powered by AI, the Lector83x delivers record-breaking reading speed
and reliability — even under the toughest conditions
The Lector83x image-based code readers offer high reading performance at medium reading distances and is easy to integrate into industrial networks. The compact camera has a resolution of 3 or 5 megapixels, a large depth of field, and a wide field of view. In addition to very high computing power and the dual-port fieldbus as well as other connections, the compact design ensures fewer devices and installation effort at reading stations.
Using AI-based segmentation, the camera also identifies damaged codes at conveyor speeds of up to 2.5 m/s and correctly assigns them to objects. The Lector83x can be intuitively configured using a web server and is ready for use within a few minutes – even without specialist knowledge.
Explore the Advantages

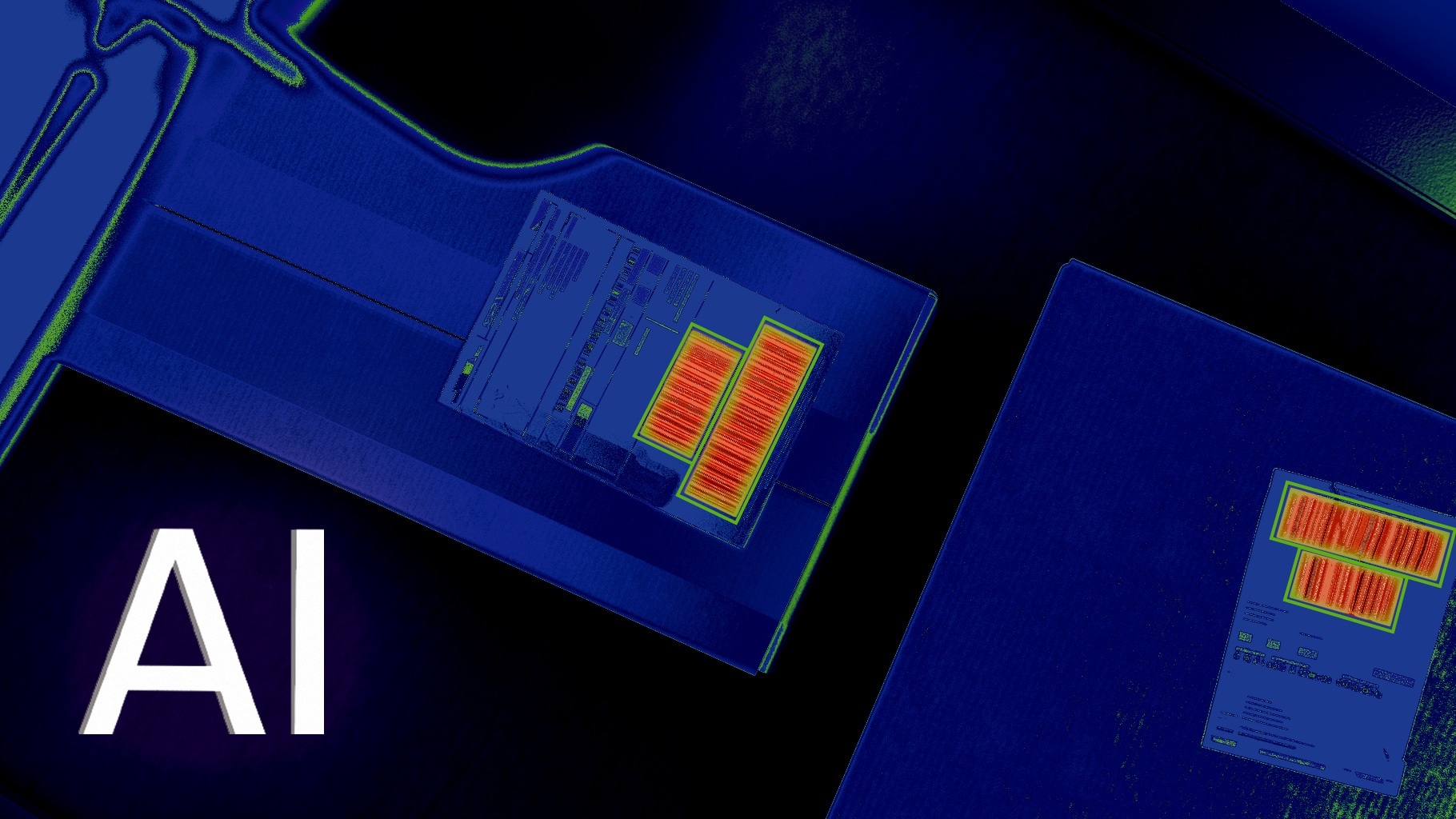

With AI-based segmentation, only the relevant image areas are decoded in real time. This ensures up to 75% faster image processing and thus higher reading speeds.

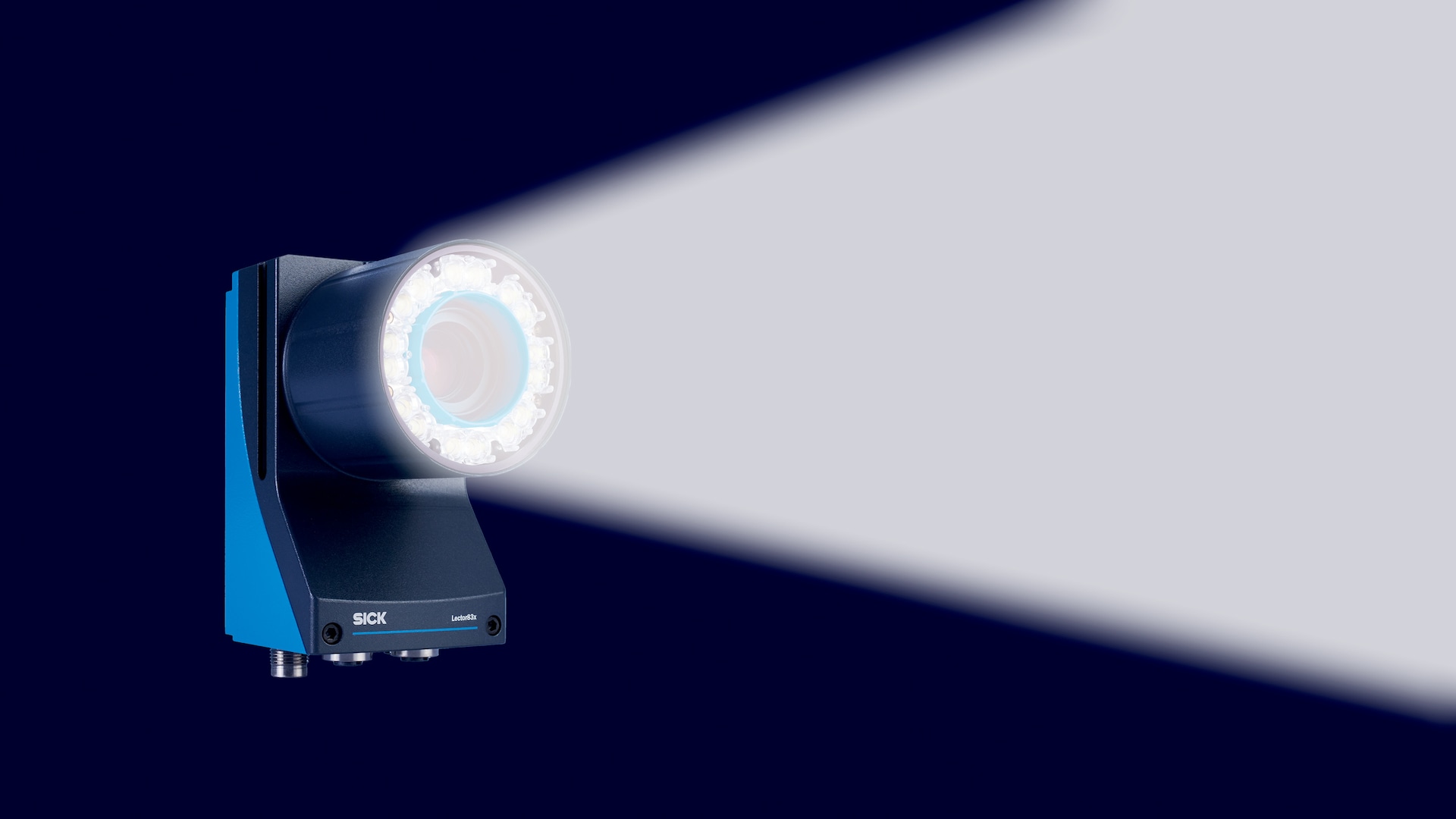

Get sharp, detailed images even for small codes with up to 5 megapixel resolution. The intense light from the 16 high-performance LEDs also reaches dark corners and increases reading accuracy and image illumination with a great depth of field.

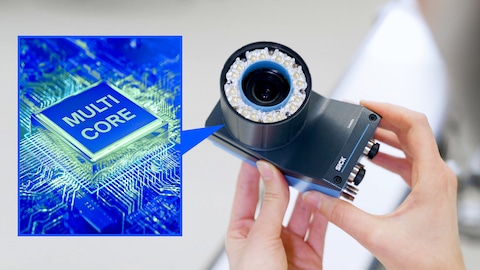

The powerful multi-core CPU ensures efficient code processing and high system speed. For confined spaces and mobile applications, the Lector83x offers high performance in a compact design.
The Artic Shield variants of the Lector83x and Lector85x ensure stable and reliable code reading in refrigerated and deep-freeze environments. Even at temperatures between –28 °C and –35 °C, device performance and read rate remain at a high level – for reliable and efficient material flow even under extreme conditions.

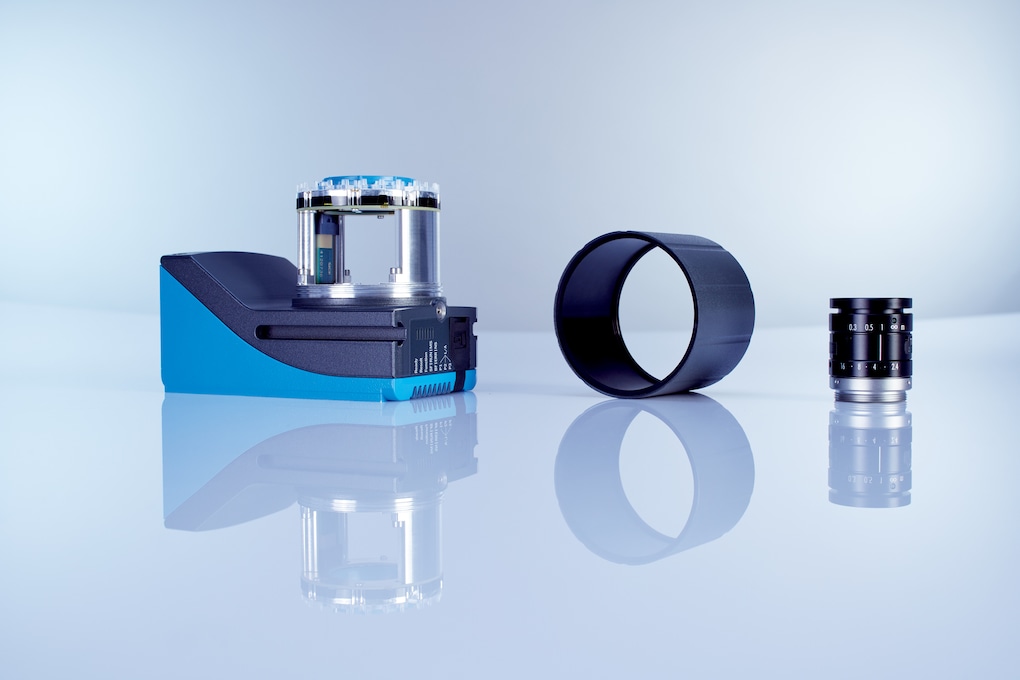

Thanks to various lenses, the Lector83x effortlessly captures codes with a wide field of view in the close range or fine details from a distance (200 – 2,500 mm).

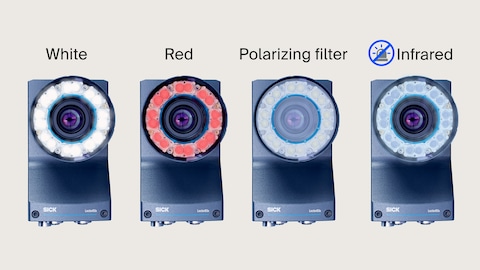

Reliable code reading is based on clearly visible codes. Selectable illuminations enable high-contrast images regardless of code and background color. A polarizing filter that can be switched on reduces reflections and glare, e.g., on shiny surfaces. Infrared light (NIR) prevents dazzle for employees during operation.
With advanced connectivity for seamless integration and the Quickstarter setup,
you’ll be up and running in just five minutes — no expert required
Configure the Lector83x through its built-in web server using Ethernet or USB-C. Diagnostics and monitoring are straightforward, and the device integrates securely and scalably into existing IT infrastructure.
Simply enter your application details through the intuitive graphical interface, and the Lector83x configures itself automatically — no expert needed, ready to use in minutes.
Save your configuration to a microSD card for quick, easy replication across multiple devices — a major time-saver when setting up several units or swapping out a device during unplanned downtime.
Simple, Flexible Network Integration
Struggled with time-consuming or complicated shop-floor data integration in the past? The Lector83x image-based code readers are built to get your operations connected fast.

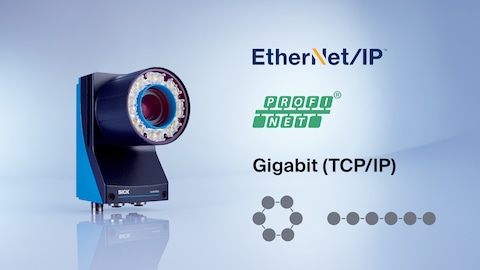

The integrated dual-port fieldbus supports PROFINET and EtherNet/IP™, enabling flexible ring and line network topologies for efficient, reliable data transmission. A dedicated Gigabit Ethernet connection supports high-resolution image transfer and TCP/IP integration.

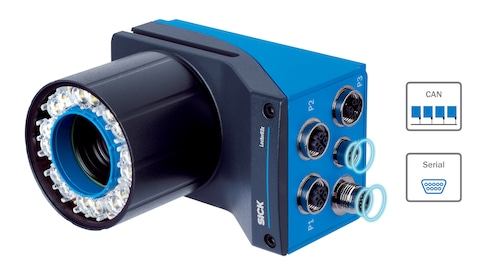

The Lector83x integrates as a primary or secondary device via the established SICK CAN sensor network (CSN), with additional connections for power, digital I/O, and serial communication to simplify setup and control.

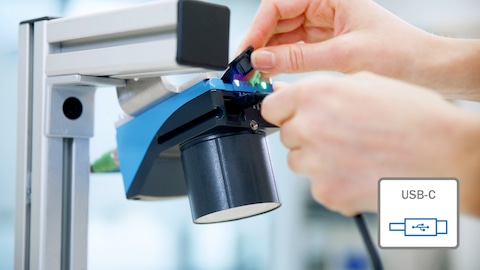

A dedicated USB-C connection provides a convenient service interface for configuration and diagnostics — without adding load to your operating network.
Lector83x Applications

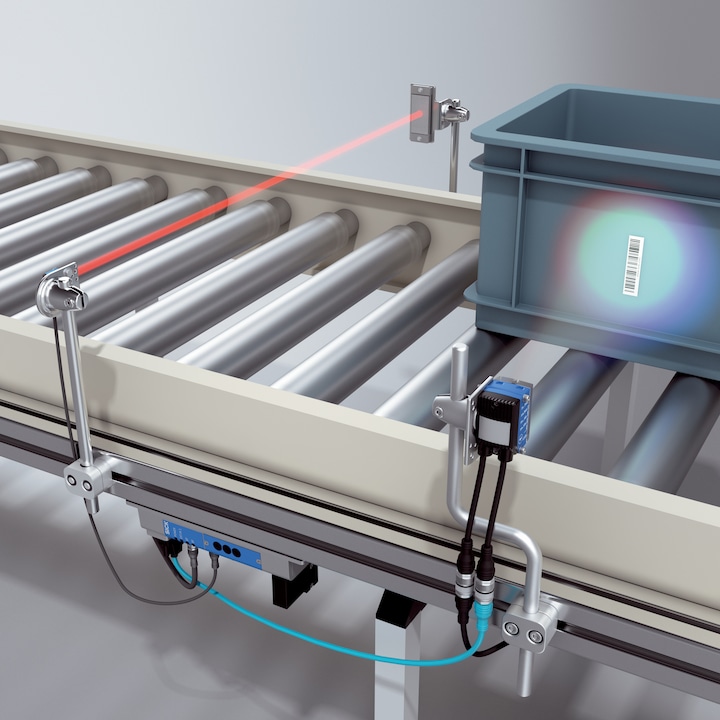

Retail and warehousing: Identification in sorting and picking processes, recording of incoming and outgoing goods- CEP industry: Identification, e.g., for letters, parcels, flats
- Automotive: Tire identification
- Packaging industry: Multi-code identification on primary and secondary packaging
Discover how the Lector83x makes code reading
faster, smarter, and easier than ever
