Using the all-rounder in a small space
TERMSERIES-compact relays are desiged with a super slim, and more importantly, flat design. You can install these new, ultra-compact modules anywhere. Plus, their maximum vibration resistance enables maximum machine and system availability.
With its closed design and impressively slim depth of only 63 mm, the TERMSERIES-compact is here to revolutionize your electrical installations.
Discover the benefits
- Extremely compact and space-saving with only 6.4 mm width and 63 mm depth
- 100% vibration-proof thanks to enclosed design
- Simplified function check thanks to integrated status LED
- Particularly tamper-proof thanks to permanently installed relays
- Hig efficiency and user-friendliness
Explore the Advantages
TERMSERIES-compact can be used in a wide range of appilcations thanks to different versions and a variety of input voltages with 24-230 V UC and 12-60 V UC available for the first time in an extremely compact design.
The compact housing offers low overall height of only 63 mm. That's why TERMSERIES-compact also fits into flat control cabinets. Due to the narrow design with an overall width of only 6.4 mm, additional space is gained in the control cabinet.
Due to the proven PUSH IN connection technology, the wiring time is reduced by 75% compared to conventional connection technologies. If the clamping point has to be released again, a short press with a conventional screwdriver is all you need. {slider=Highly flexible} Continuous cross-connection channels on each connection level ensure maximum flexibility in connection options. This allows for more customized set-ups and saves wiring time at each level.
The respective input voltage type is clearly identifiable by color accents. Blue = DC, white = UC, red = AC. The article number is located on the colored surface and can be read at any time, even when installed.
Pluggable standard markers are used for identification, and the connection designation is easily readable from all directions. The brightly lit status LED enables a quick visual function check, which facilitates maintenance.
A lasered QR code on the page of each product leads directly to the respective data sheet in the Weidmüller online catalog. All product information can be conveniently accessed here.
With the TERMSERIES-compact, the Klippon Relay family now features an "all-rounder" relay in a terminal block format. They're not only compact, but versatile, as well. They've been designed with customization in mind. In addition to normally open contact versions, you can combine switching and protection in this one relay.

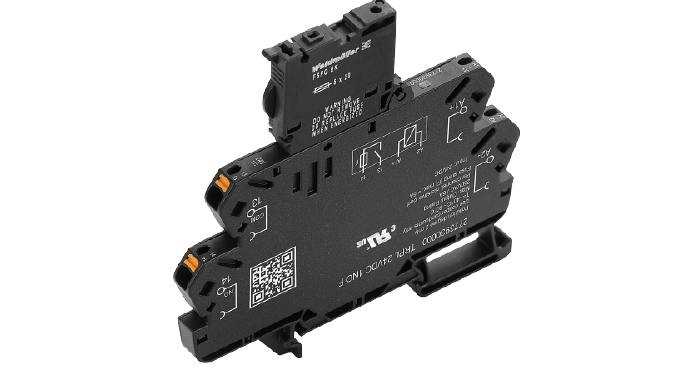

Relays with integrated fuses are suitable for ensuring the reliable functioning of machines and systems and increasing their availability. In the event of faults, they switch off individual line paths to protect the rest of the system.
Increase productivity in control cabinet wiring.
Precisely fitting accessories are available for TERMSERIES-compact. In addition to the seamlessly compatible accessories from the tried-and-tested TERMSERIES family, the custom-fit range of accessories makes daily work easier.
For easy feed-in of neutral or negative potentials at the input of switched potentials at the output. Cross-connections enable space-saving connection of sensors and actuators without additional feed-through terminal blocks. Go to Weidmuller product catalog
With the precisely fitting partitions, signals can be grouped visually, assemblies can be galvanically separated or clearly arranged labels can be added. Perforations allow cross-connection channels to be broken out individually. Go to Weidmuller product catalog
The precisely fitting terminals enable potentials to be brought from the control side to the load side and vice versa. Due to the compatibility with the TERMSERIES, there is a uniform test system with a standardised test tap. Go to Weidmuller product catalog
Are you ready to take your electrical installations to the next level?
Your IES team will help you explore the power of these 100% function-tested relay modules.
