The Temposonics® G-Series V is the fifth-generation sensor series that combines the trusted durability of the original G-Series with the advanced mechanical design of the R-Series V platform. Granting balanced performance.
- Backward compatible
- Increased vibration resistance of up to 30g (digital)
- Available as
- rod version (GH5) for cylinder integrated position measurement
- profile version (GP5) for position measurement of a motion axis
- Output: Analog, Digital (PWM, Start/Stop)
- Effortless programmability via the TempoLink® Smart Assistant
Engineered for enhanced performance
The G-Series V retains the robust characteristics that have made the G-Series a benchmark in industrial environments. Now featuring backward compatibility for digital (PWM and Start/Stop) and analog outputs, it enables seamless upgrades for existing systems - offering improved results without compromising on integration ease.
Increased vibration resistance
Vibration resistance up to 30g is now standard in the base sensor model. This makes it particularly well-suited for demanding environments such as lumber or metal processing, where components must withstand intense vibration and heavy shock.
Its rugged and modular mechanical design allows for easy replacement of the sensing element and electronics without breaking the cylinder‘s high pressure seal. This not only prevents leaks from the cylinder port, but also significantly reduces maintenance costs and downtime.

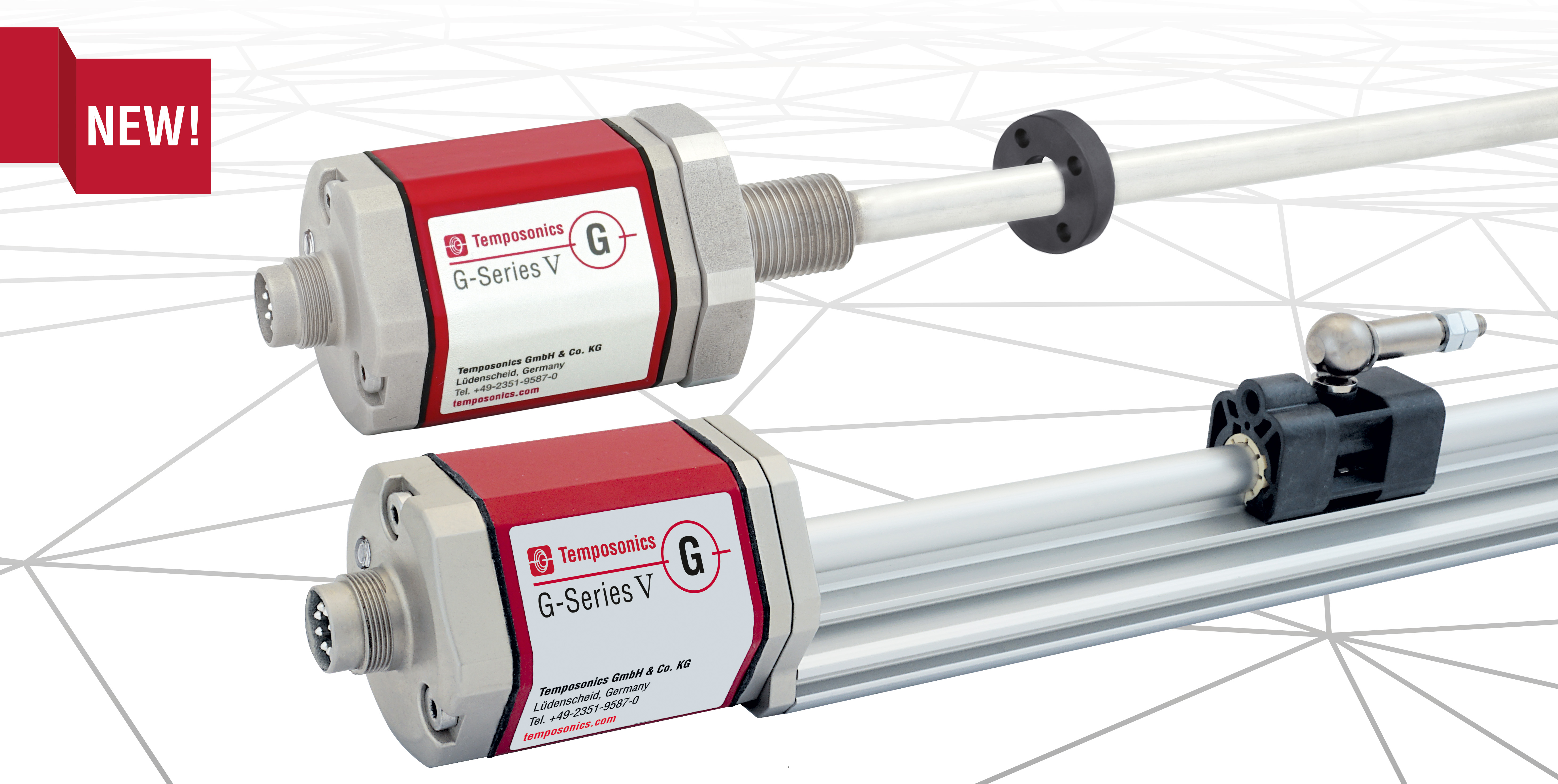

Temposonics G-Series V analog & digital
Backward compatible, ready for the future
The G-Series V is available in both profile and rod versions with analog and digital outputs (PWM and Start/Stop).

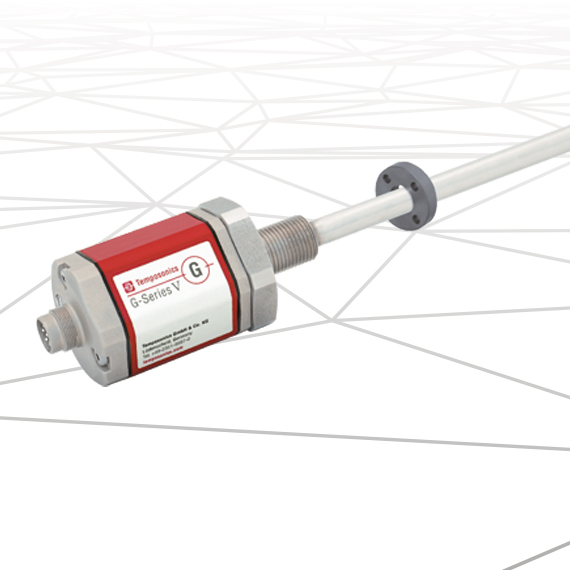

G-Series V GH5 – Rod-style sensor
- Increased operating temperature up to +80 °C (+176 °F)
- Increased shock & vibration resistance
- Output: Analog, Digital (PWM, Start/Stop)
- Effortless programmability via the TempoLink® Smart Assistant

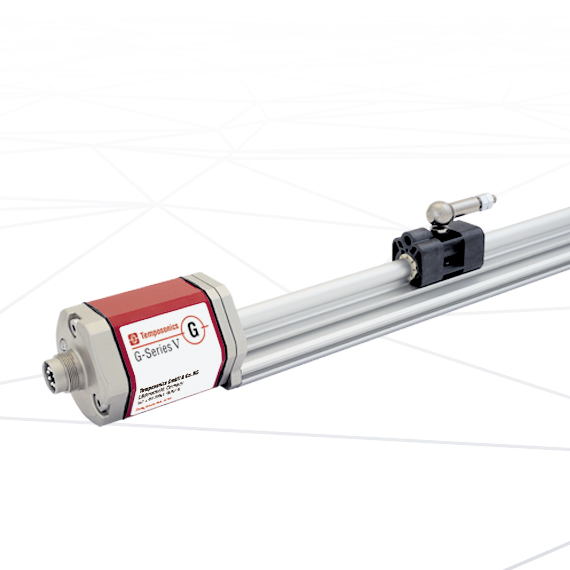

G-Series V GP5 – Profile-style sensor
- Increased operating temperature up to +80 °C (+176 °F)
- Increased shock & vibration resistance
- Extended stroke length
- Output: Analog, Digital (PWM, Start/Stop)
- Effortless programmability via the TempoLink® Smart Assistant
TempoLink® Sensor Assistant for G-Series V
Compact. Intuitive. Mobile.
The TempoLink® Sensor Assistant simplifies the integration of your sensor into the application. It acts as a smart interface between the sensor and the user, enabling quick and intuitive configuration.
The following information is available for programming:
- Current parameter settings
- Sensor information such as the order code and serial number
Designed for mobile use, the TempoLink® features a compact design that fits easily into any pocket.
The user interface is accessed via smartphone, tablet, or computer through an integrated Wi-Fi access point - no connection to the company network is required. Communication between the sensor and the assistant is established via the power supply, ensuring a simple and efficient setup.
Temposonics Magnetostrictive Technology
At the heart of every Temposonics sensor lies our proprietary magnetostrictive technology. The core component - a magnetostrictive waveguide, developed and manufactured in-house - enables contactless measurement with no mechanical wear. This ensures a long sensor life, outstanding reliability, and maintenance-free operation. Since the sensors output absolute position values, there is no need for recalibration after a power outage or system restart.
Unmatched Protection for Your Industrial Sensors
We're excited to announce an optional 5-Year extended warranty is now available with your next purchase of any Temposonics® industrial sensor.
Discover Your Benefits | Download Warranty Flyer
Ready to upgrade your application?
