SITOP PSU6200. High performance. Focused diagnostics.

SITOP PSU6200 – the all-around power supply

The SITOP PSU6200 all-around power supply, which is particularly powerful and rugged, can be used for a wide range of applications and offer extensive functions for:

  • targeted diagnostics.
  • fast assembly.
  • reliable operation.



The single-phase and brand-new 3-phase power supply features award-winning industrial design, space-saving width, optimized terminals, comprehensive diagnostic options, and high operational reliability.  SITOP PSU6200 is the extremely high-performance power supply for 12, 24 and 48 V standard applications.








► SITOP on YouTube





SITOP PSU6200 Benefits

+ - Permanent condition monitoring Click to collapse

SITOP PSU6200 - Permanent condition monitoring



Permanent condition monitoring

thanks to integration in the automation system via their diagnostics interface.



+ - Fast check-up directly on the housing Click to collapse

SITOP PSU6200 - Fast check-up directly on the housing



Fast check-up directly on the housing

with the diagnostics monitor on the front of the LED display showing DC condition, capacity utilization, or operating hours of the power supply unit.



+ - High safety level while the system is operating Click to collapse

SITOP PSU6200 - High safety level while the system is operating

High safety level while the system is operating

thanks to 150 percent extra power for up to 5 seconds per minute, constant current for short-term overloads and Hiccup mode.



+ - Fast, error-free wiring Click to collapse

SITOP PSU6200 - Fast, error-free wiring



Fast, error-free wiring

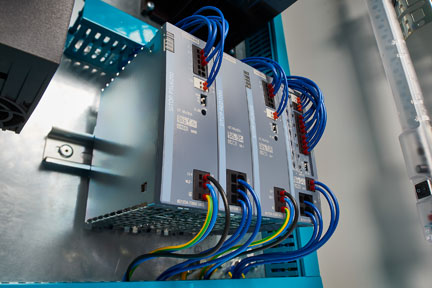

using push-in terminals, unique terminal labeling, and a third negative terminal for grounding.









Focused Diagnostics.  Top Integration.

The power supply units from 10 amps inform users about the status of the device and the operating state. The diagnostics monitor indicates by means of LEDs whether the output voltage is correct, how high the load is and whether the end of its service life is approaching.

In addition, via the diagnostics interface, users receive information about voltage and current values, the temperature status, and the number of undervoltages and overvoltages at the output. Only one digital input of a controller (PLC) is required for the diagnostics. Free-of-charge function blocks for Simatic S7-1200 and S7-1500 evaluate the serial code and faceplates facilitate visualization in WinCC. The comprehensive condition monitoring enables users to respond promptly to critical conditions and thereby to make the supply of the control circuit even more secure.

  • LED and signaling contact for “DC o.k.” on all versions, diagnostics monitor, and interface as of 10 A
  • Diagnostics monitor with utilization and end-of-service-life indication via LEDs for “DC o.k.,” utilization, and remaining service life
  • Diagnostics interface for connecting to the automation via just one digital PLC input
    • Display of operating parameters and status: power, voltage, overload, operating hours, temperature status, manufacturing date, and type
    • Evaluation by means of a preassembled function block as ready-to-run code for SIMATIC S7-1200 and 1500 as well as display on WinCC faceplate

+ - VIDEO:  Alex's SITOP PSU6200 Integration Story Click to collapse




Fast Installation. Top Efficiency.

The connection terminals with push-in technology and their clear labeling enable fast and secure wiring.

  • Push-in terminals
  • Unique terminal labeling on the front of the unit
  • Additional minus terminal (grounding) for potential equalization/PELV according to the Machinery Directive
  • Line fed in from the front
  • Slim design
  • No lateral installation clearances required
  • High degree of efficiency of up to 95%
  • As of 10 A: active PFC (power factor correction) for high power factor/reduction of reactive current component

+ - VIDEO: Luke's SITOP PSU6200 Efficiency Story Click to collapse


The connection terminals with push-in technology and their clear labeling enable fast and secure wiring.




Dependable operation.  Top reliability.

The reliable Sitop PSU6200 product family is the new standard power supply that is also suitable for customers with high technical requirements. For example, the de for example, with redundancy and selectivity modules – in order to improve the reliability even further. Devices can also be expanded to form an uninterruptible 24 V power supply (DC UPS).


  • High overload capacity, thanks to 150% extra power for 5 s/min and constant current behavior
  • Robust AC input with a wide range and DC capability
  • Rugged metal enclosure
  • Designed for optimal heat dissipation



+ - VIDEO:  Tom's SITOP PSU6200 Reliability Story Click to collapse







Applications

Typical applications include standard machine, control cabinet, and system construction in the automotive, textile, food & beverage, and pharmaceutical industries, as well as the field of renewable energies.



Fear of short circuit or overload?

Power failures, extreme voltage fluctuations or a faulty load can paralyze system operations and cause considerable costs. The SITOP add-on modules, individually protect your production from various sources of danger and increase your system availability with a complete, all-around protection.

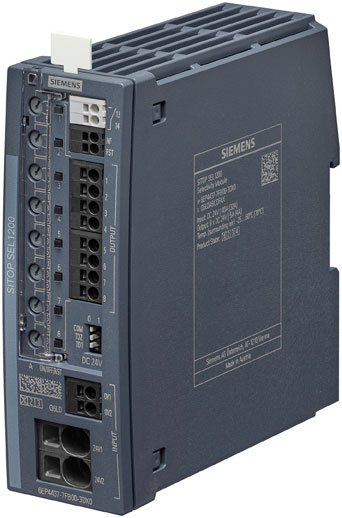

The SITOP SEL1200 and SEL1400 selectivity modules are an ideal addition to all 24 V power supplies for distributing and monitoring the load current across several power branches.

→ Learn more
